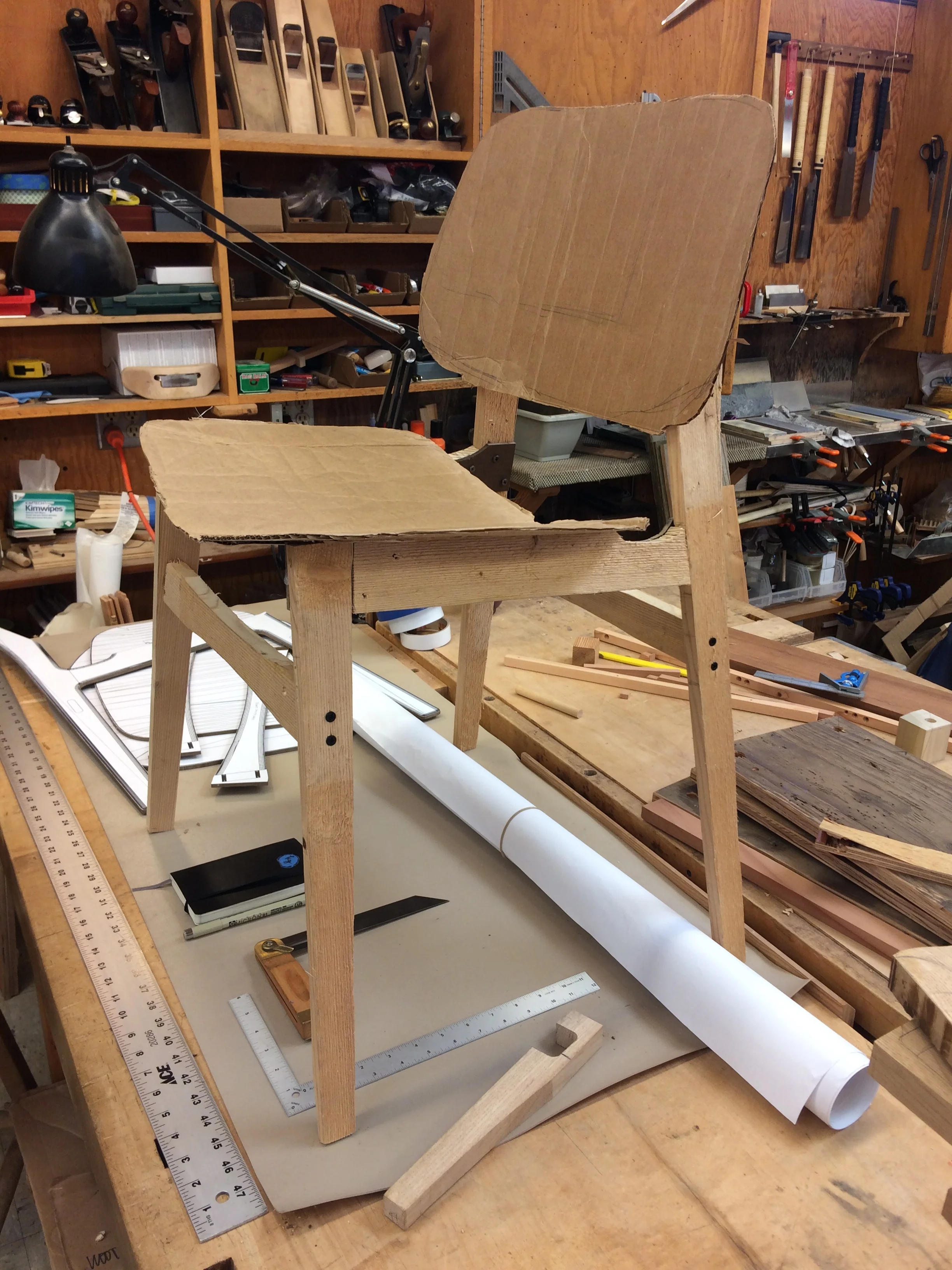

Updated Mockup

 I tuned up the mock-up to better represent the actual design.

I tuned up the mock-up to better represent the actual design.

Tapered Planing Sled

 In order to uniformly taper all of the legs, I made this sloped sled to carry the legs through the thickness planer.

In order to uniformly taper all of the legs, I made this sloped sled to carry the legs through the thickness planer.

Søborg Chair: Wood and Patterns

 With patterns printed, glued to hardboard, and cut out, I now lay out the pieces on a plank of white oak. Having used brown oak, black oak, and tan oak in my previous projects, it seems like a logical choice to build this project with the remaining species of oak in the building.

With patterns printed, glued to hardboard, and cut out, I now lay out the pieces on a plank of white oak. Having used brown oak, black oak, and tan oak in my previous projects, it seems like a logical choice to build this project with the remaining species of oak in the building.

 Pieces are rough sawn and stickered as I allow the internal stresses to relieve and wait for any warping or twisting to happen before working them further.

Pieces are rough sawn and stickered as I allow the internal stresses to relieve and wait for any warping or twisting to happen before working them further.

Plans and Improvements

 I found the plans at the manufacturer's website which will help me better understand Mogensen's design.

I found the plans at the manufacturer's website which will help me better understand Mogensen's design.

 While close, it is obvious now that the angles in my initial mockup are off.

While close, it is obvious now that the angles in my initial mockup are off.

Third Project: Søborg Chair

For my final project of the year, I wanted to design and build a Scandinavian-inspired lounge chair. However, given that there are less than seven weeks remaining, that is an overly ambitious goal. Instead, I will make a pair of Børge Mogensen's classic Søborg Chair. This chair, designed in 1950, is still being made in Denmark by Fredericia Furniture A/S.

 A quick mock-up of the chair based on images I found in books and online.

A quick mock-up of the chair based on images I found in books and online.

Second Project: Complete

This wall cabinet is a literal and figurative expression of a student's audaciousness to attempt new things. My desire to push the limits of my skills as a woodworker is mirrored here by the the protruding features, reaching beyond the safety of the central enclosure.

The brown oak, as rich and visually compelling as it is, is a brittle and unforgiving wood to work with. In more practiced hands than mine, it likely is tameable. However, it constantly reminded me of how much more skilled I still hope to become.

The protruding half-blind dovetails do not offer the safety net of grain consolidation during final planing. Even the composition of the piece, asymmetric and unconventional, challenged me to create a form that moved beyond my first inclinations.

I named it "Throughsie" as there are many projecting, protruding, and intersecting elements.


Second Project: Ebony Hardware

 Chiseling out the mortise for a square pressure button.

Chiseling out the mortise for a square pressure button.

 Ebony drawer stops

Ebony drawer stops

 Continuing the theme of squared elements, these are mortises for shelf consoles.

Continuing the theme of squared elements, these are mortises for shelf consoles.

 Some call it a flipper-flapper, here is my ebony friction latch.

Some call it a flipper-flapper, here is my ebony friction latch.

What really matters.

With a head down at a workbench, monastically focusing on my own development, I cannot forget that there are issues much more important than craftsmanship, woodworking, or exhibitions. They are truth, equity, friends, community. Today my head is up, with so many others.

 #radwomeniamfortunatetoknow

#radwomeniamfortunatetoknow

Second Project: Stock Broken Down

 Brown oak for the cabinet and ash for the drawer sides and bottoms.

Brown oak for the cabinet and ash for the drawer sides and bottoms.

 Mocking up an ebony door handle and how it fits into the side in a couple brown oak off-cuts.

Mocking up an ebony door handle and how it fits into the side in a couple brown oak off-cuts.

 Checking how the figure plays with adjacent pieces by dry fitting the pieces. Also, keeping things oversized for as long as possible.

Checking how the figure plays with adjacent pieces by dry fitting the pieces. Also, keeping things oversized for as long as possible.

Second Project: Exploring Drawer Pulls

It may be a bit early to start making drawer pulls for this project but I think pulls, knobs, and other hardware should be considered as much as any other element. Remember Walter Gropius and the Bauhaus theory of "total design"? Every component should be functional and intentionally designed to be supportive of the entire constructed piece.

 Walnut and ebony pull prototypes. The upper row has hand carved dimples underneath as a little tactile surprise. I think I will go with something from the bottom row, however. The cabinet is brutal in form and a pull that is similarly planar will fit its gestalt.

Walnut and ebony pull prototypes. The upper row has hand carved dimples underneath as a little tactile surprise. I think I will go with something from the bottom row, however. The cabinet is brutal in form and a pull that is similarly planar will fit its gestalt.

First Project: Complete

Finished in time for Christmas, I will give these to my sister's kids (aged 2, 3, and 4) but then have to borrow them back for the upcoming Mid-Winter Show. How does one explain a furniture exhibition to a pre-schooler?

 The stools are tested as the class appreciates Noam Wise's black oak cafe table.

The stools are tested as the class appreciates Noam Wise's black oak cafe table.


Second Project: A Funky Little Wall Cabinet

With the stools pretty well wrapped up, it seems like a good time to work on something with right angles, dovetails, drawers, and doors.

 First there was a tiny prototype, then a full-scale model.

First there was a tiny prototype, then a full-scale model.

 Playing with edges that protrude proud from the front plane of the cabinet and a door pull that sticks through the side. Also, drawing with chalk to simulate a very striped piece of wood that I may select for the actual piece.

Playing with edges that protrude proud from the front plane of the cabinet and a door pull that sticks through the side. Also, drawing with chalk to simulate a very striped piece of wood that I may select for the actual piece.

Full Scale Prototypes

 Four sticks and a bit of cardboard, starting to get a feel for massing and the relationship between the legs and the cabinet.

Four sticks and a bit of cardboard, starting to get a feel for massing and the relationship between the legs and the cabinet.

 Slightly more resolved.

Slightly more resolved.

 And after taking the mockup home and trying it next to the bed, I realized it was too tall. Here it has been shortened and now I am playing with various leg shapes.

And after taking the mockup home and trying it next to the bed, I realized it was too tall. Here it has been shortened and now I am playing with various leg shapes.

Bedside Table Prototype

I am already thinking about what to build next. Perhaps a pair of bedside tables with an open cubby, a drawer, and negative space defined by the two carcasses.


First Project: Choosing Wood

 Choosing between Ash, Black Oak, Chestnut, Acacia, and Elm.

Choosing between Ash, Black Oak, Chestnut, Acacia, and Elm.

 Laying out pieces in chalk after opting for a trio of American hardwoods: Ash, Black Oak, and Chestnut.

Laying out pieces in chalk after opting for a trio of American hardwoods: Ash, Black Oak, and Chestnut.

Guest Lecturer: David Welter

David presented images and stories of Jim Krenov's work. He then treated us to a surprise: an actual Krenov cabinet on a stand. It was really amazing to see it, feel it, and interact with it in person.
